   ECG Decoder

  January, 2006

ECG of January

Electrocardiogram of an asymptomatic 23 year-old man, who had the test done prior to knee arthroscopy.

Rate 61/min
PR 0.14 sec
QRS 0.10 sec
QT 0.44 sec
QRS axis +75

Interptetation: Precordial leads recorded at half calibration. Abnormal. Left ventricular hypertrophy with repolarization abnormalities.

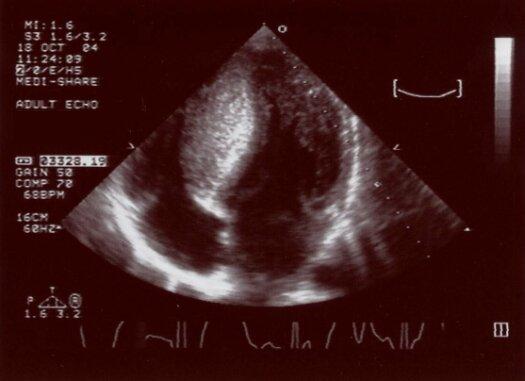

Although voltage criteria for LVH apply above the age of 40, large QRS voltage in young individuals is strongly suggestive of hypertrophy. Echocardiogram (panel below) showed hypertrophic cardiomyopathy with marked septal hypertrophy (2.6 cm), but no resting gradient in the left ventricular outflow tract.

Echocardiogram
